Control System Logic

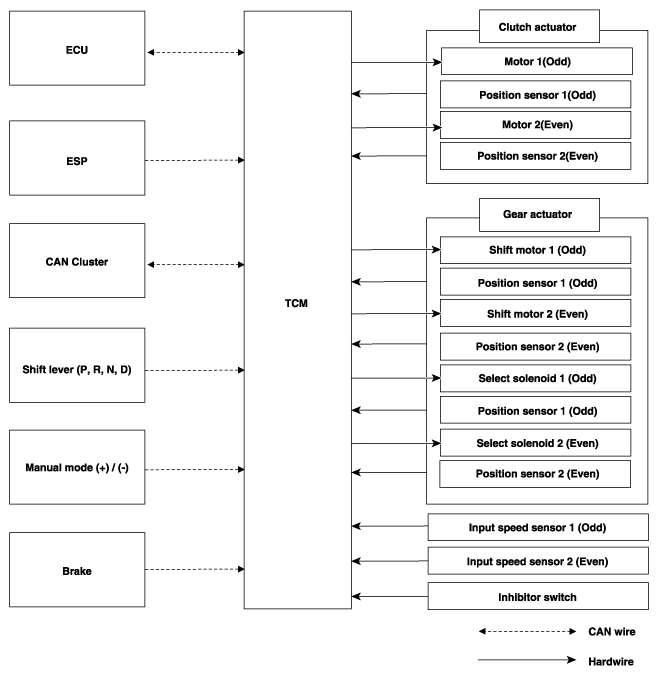

Fig 1: Dual Clutch Transmission Control System Communication Diagram
G12020933Courtesy of HYUNDAI MOTOR AMERICA
