Inspection Flow

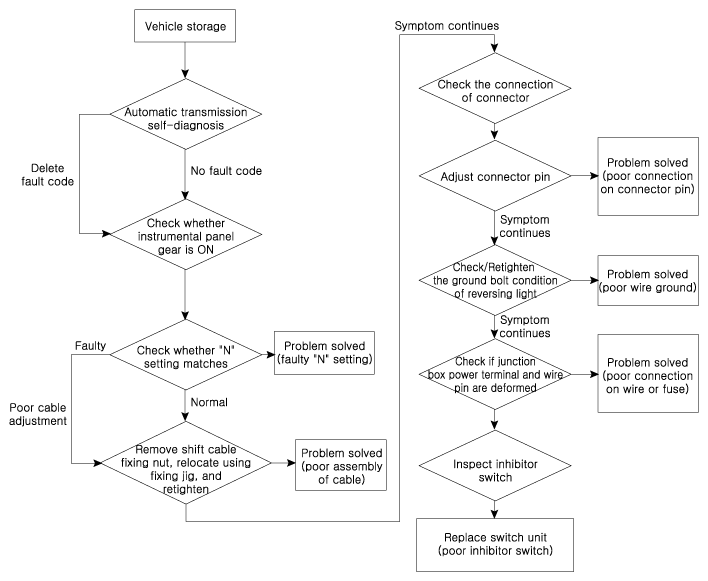

Fig 1: Automatic Transmission Self-Diagnosis Inspection Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
