Components And Components Location: Components

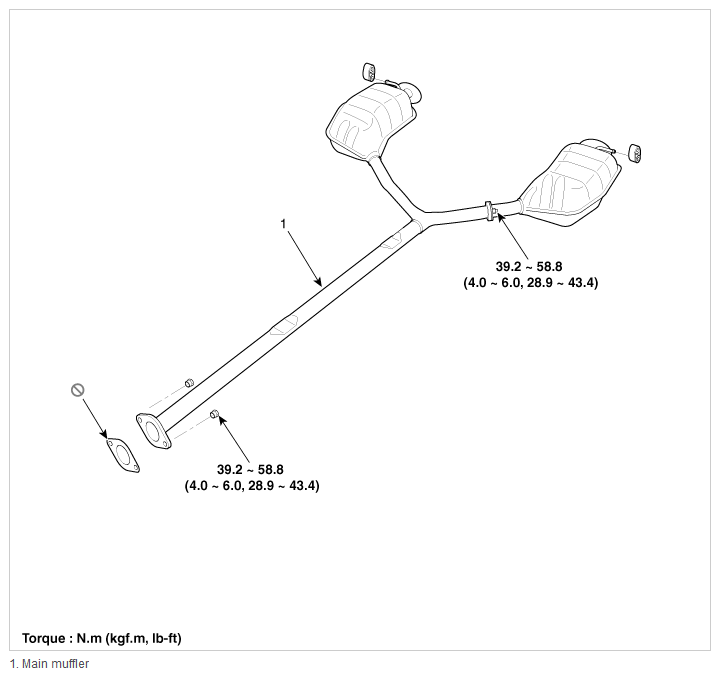

Fig 1: Main Muffler Components With Torque Specification
G12087087Courtesy of HYUNDAI MOTOR AMERICA
