Engine Control System Diagnosis (1 Of 3)
>>
DTC P0121: Throttle Position Sensor 1 Signal Circuit Range/Performance
>>
General Information
>>
Diagnostic Circuit Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

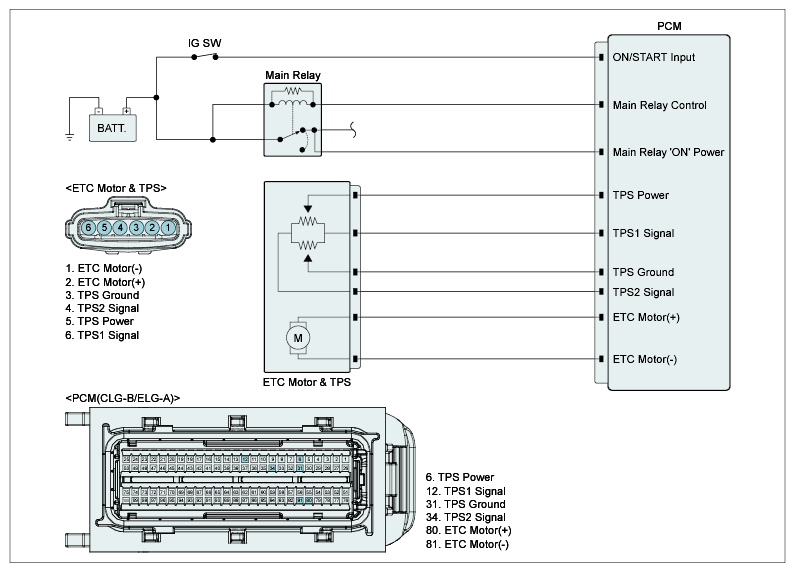

Diagnostic Circuit Diagram
Fig 1: PCM Circuit
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
