Drive Cycle (Delphi EMS Only)

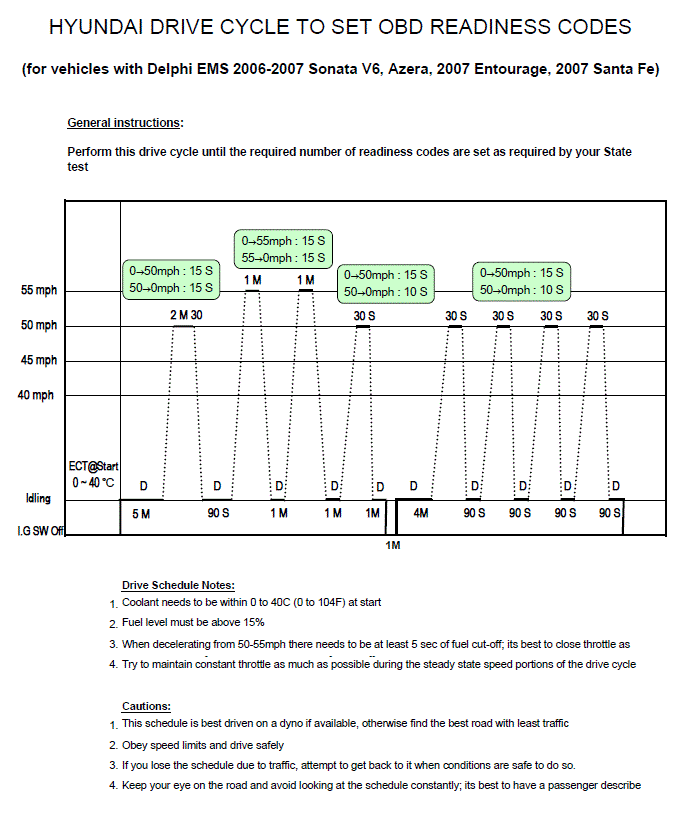

Fig 1: Drive Cycle (Delphi EMS Only)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
