Components Location

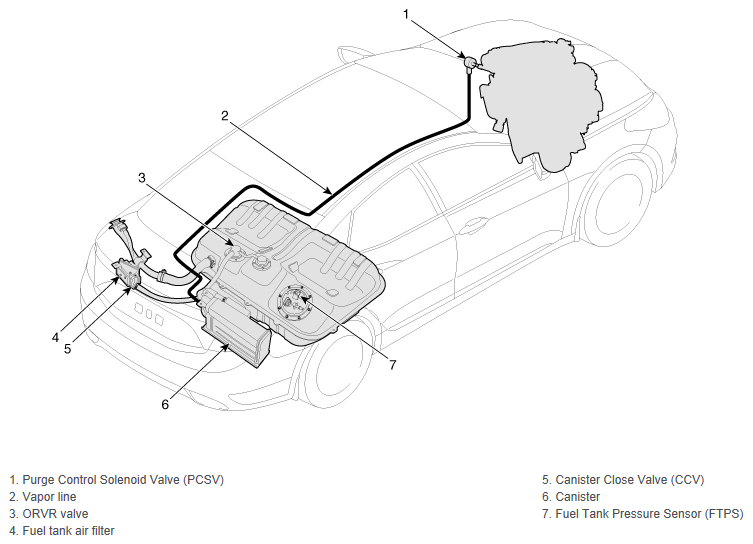

Fig 1: Evaporative Emission Control System Components
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
