Components And Components Location: Components: [RH]

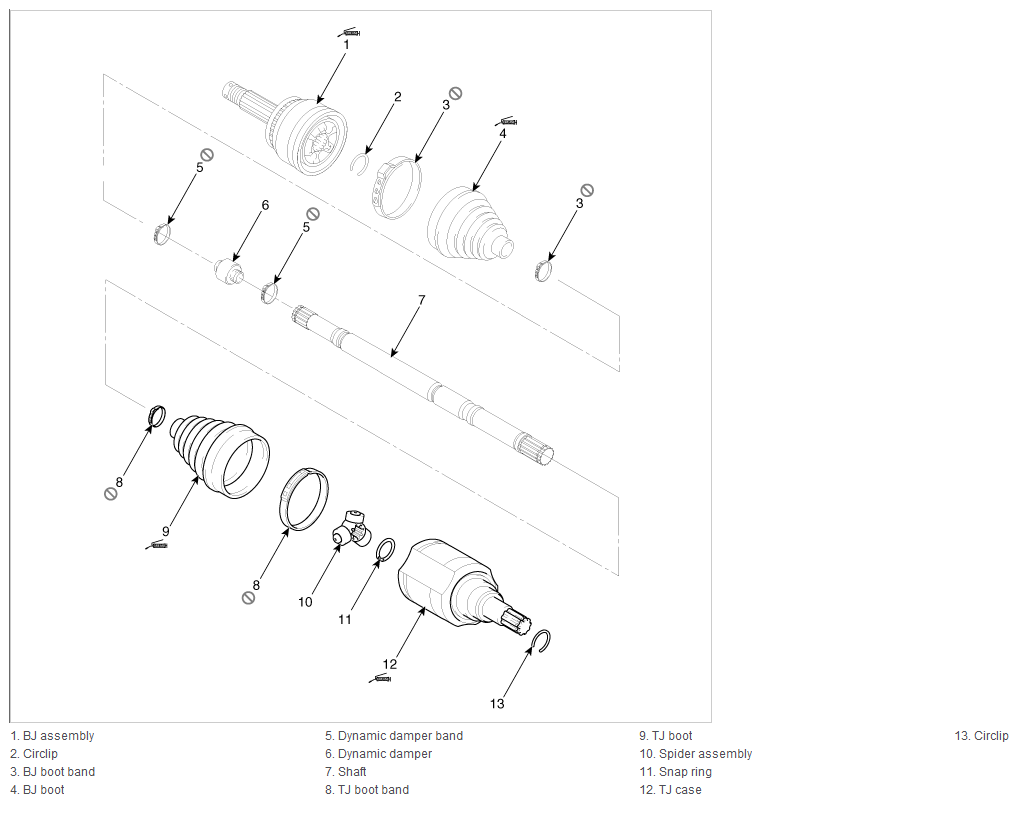

Fig 1: Exploded View Of TJ Joint Components (RH)
G12089260Courtesy of HYUNDAI MOTOR AMERICA
