Components And Components Location: Components: [RH]

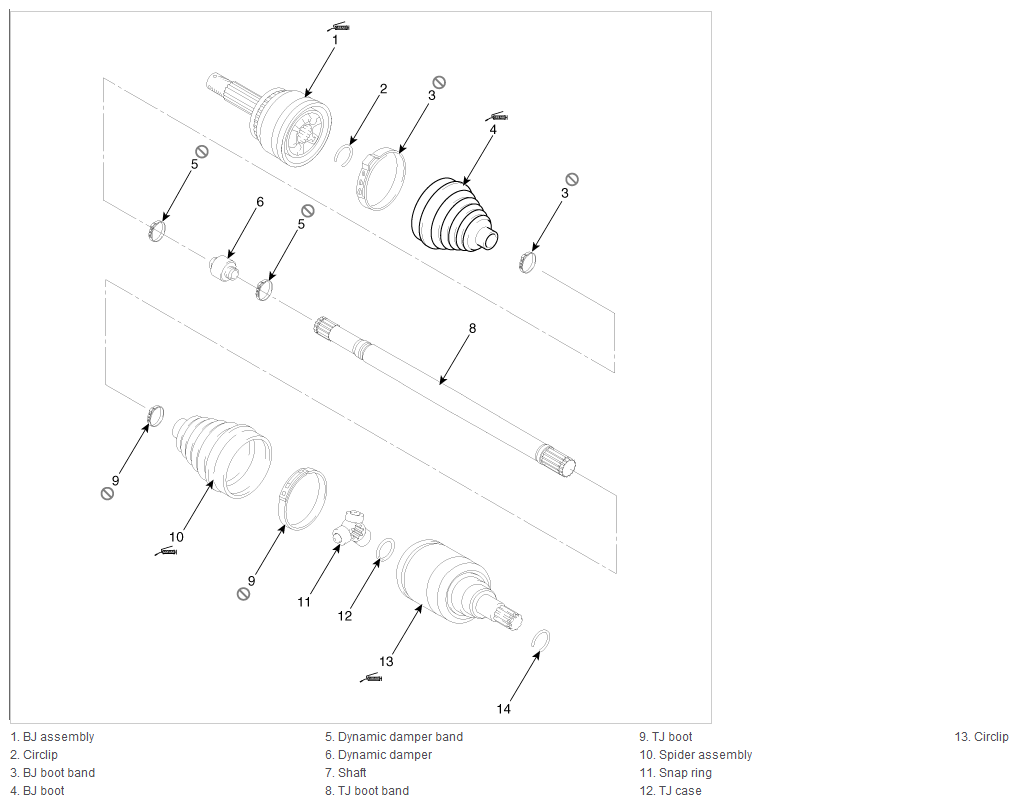

Fig 1: Exploded View Of BJ Boot Components (RH)
G12089279Courtesy of HYUNDAI MOTOR AMERICA
