Front Safety Window
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Front Safety Window

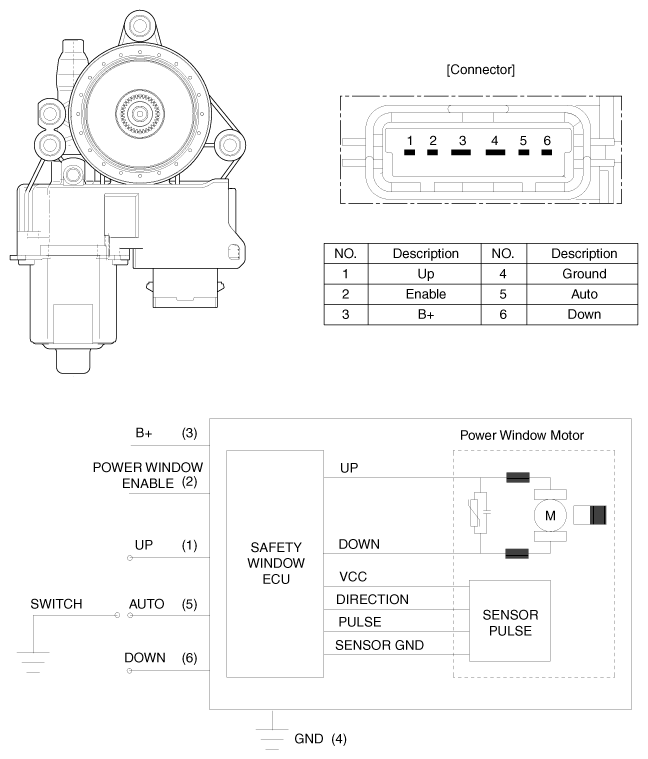

Fig 1: Power Window Motor Circuit Diagram - Front Safety Window
Courtesy of HYUNDAI MOTOR AMERICA
