Circuit Diagram

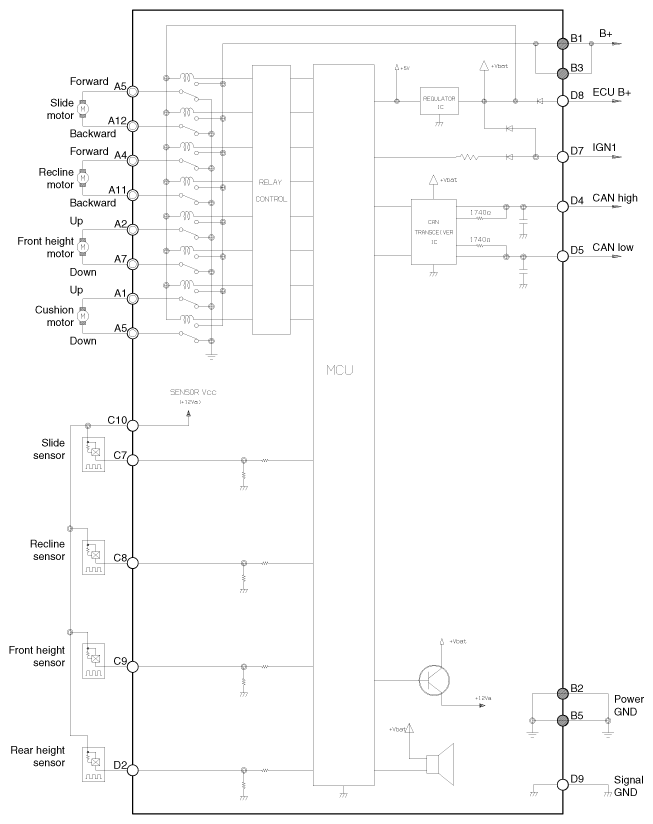

Fig 1: Integrated Memory System Circuit

G12091852

Courtesy of HYUNDAI MOTOR AMERICA
