Components And Components Location: Component

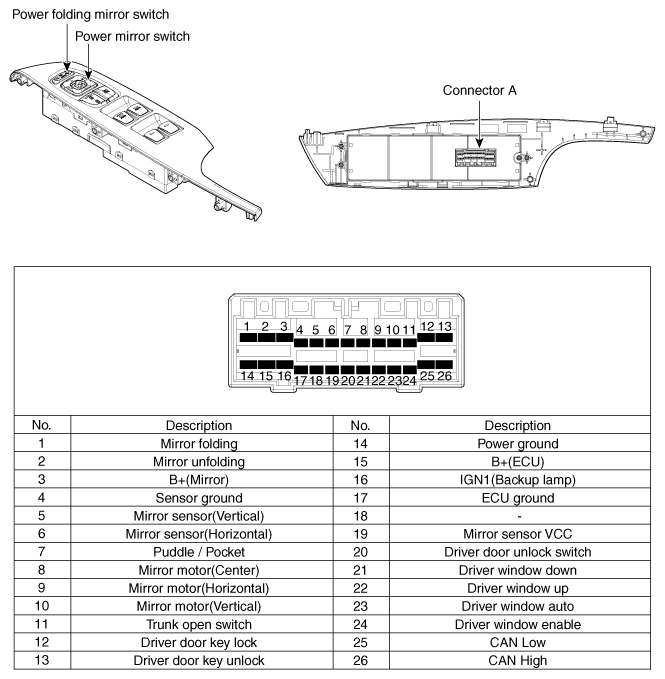

Fig 1: Power Out Side Mirror Switch Components
G12093019Courtesy of HYUNDAI MOTOR AMERICA
