Smart Key Status Check

WARNING: This page is about a different car, the 2017 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK Status INFO".
    Fig 1: Scantool Display - ID Resister And SMK Status Information
    G12054441Courtesy of HYUNDAI MOTOR AMERICA

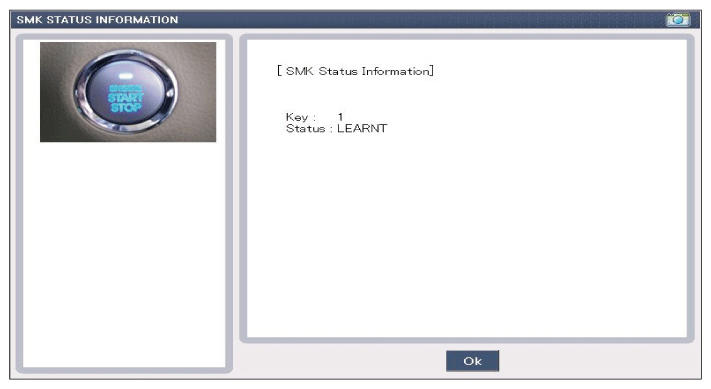

    Fig 2: Scantool Display - SMK Status Information
    G12054442Courtesy of HYUNDAI MOTOR AMERICA
