Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System
>>
Heated Oxygen Sensor (HO2S)
>>
Schematic Diagrams
>>
Circuit Diagram
>>
M/T
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

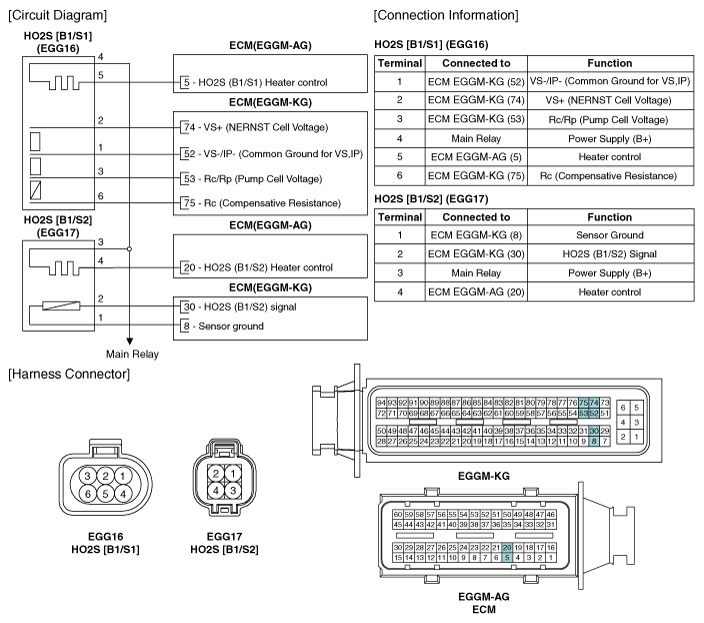

Circuit Diagram: M/T
Fig 1: Heated Oxygen Sensor Diagram (M/T)
Courtesy of HYUNDAI MOTOR AMERICA
