Components Location

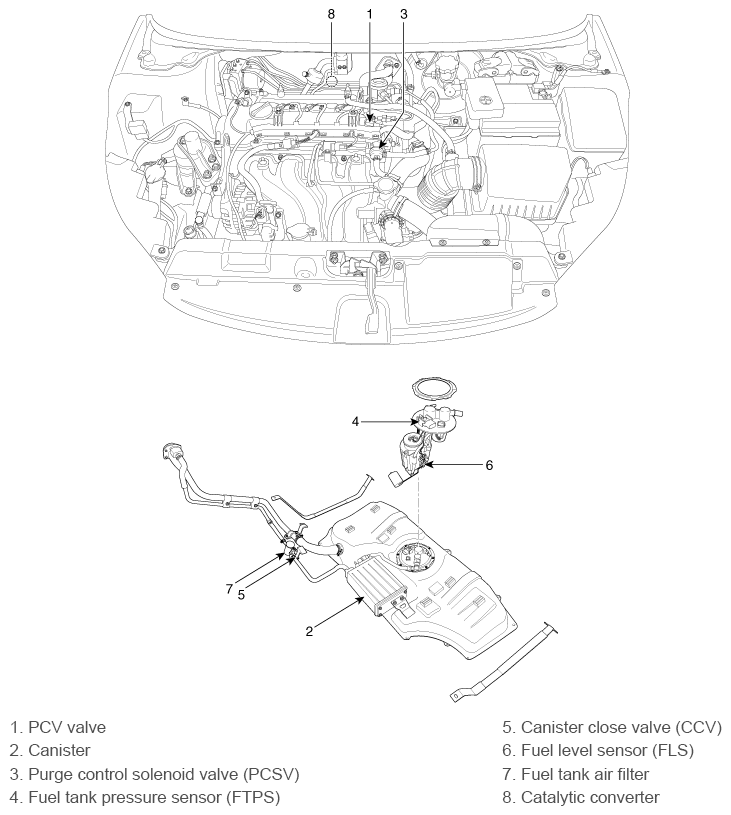

Fig 1: Emission Control System Components (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

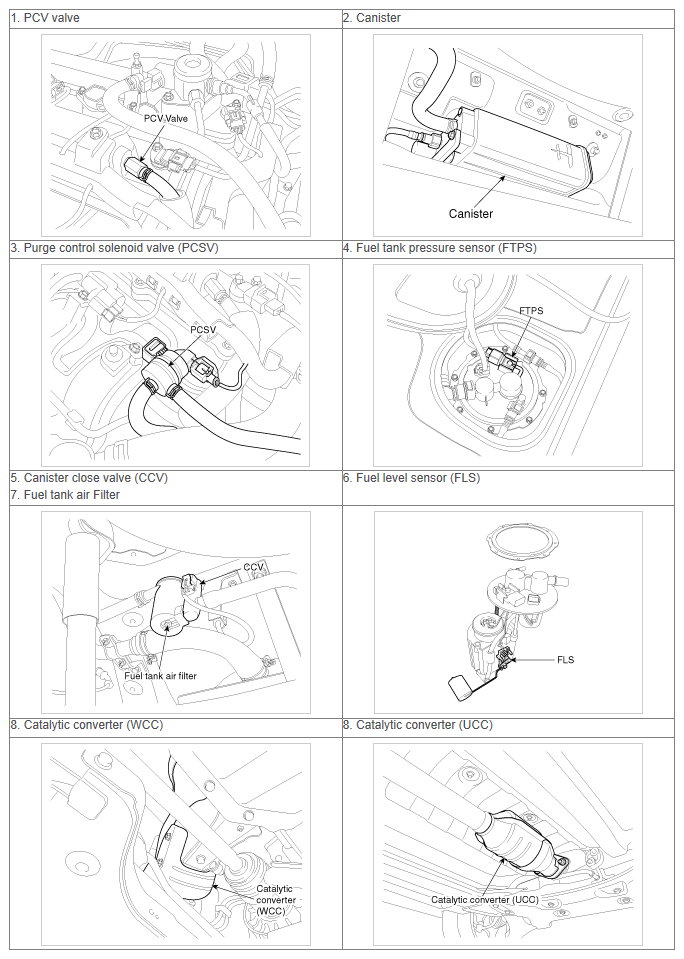

Fig 2: Emission Control System Components (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
