Circuit Diagram

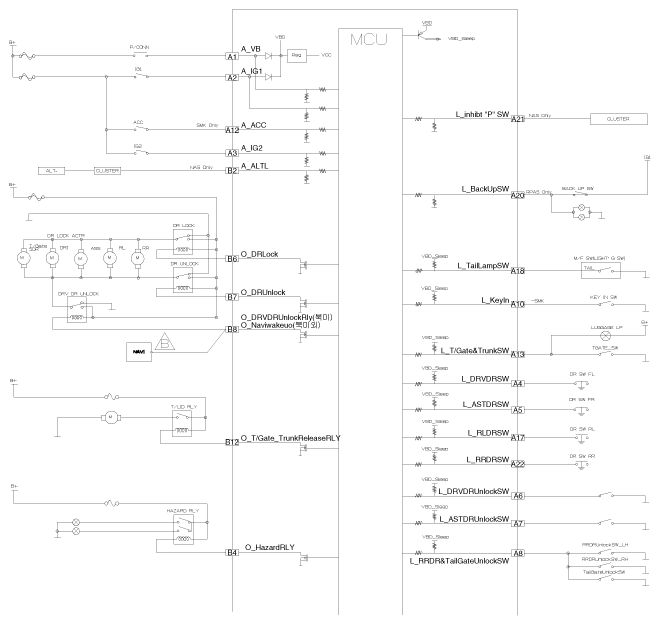

Fig 1: BCM Diagram (1 Of 2)
G12019169Courtesy of HYUNDAI MOTOR AMERICA

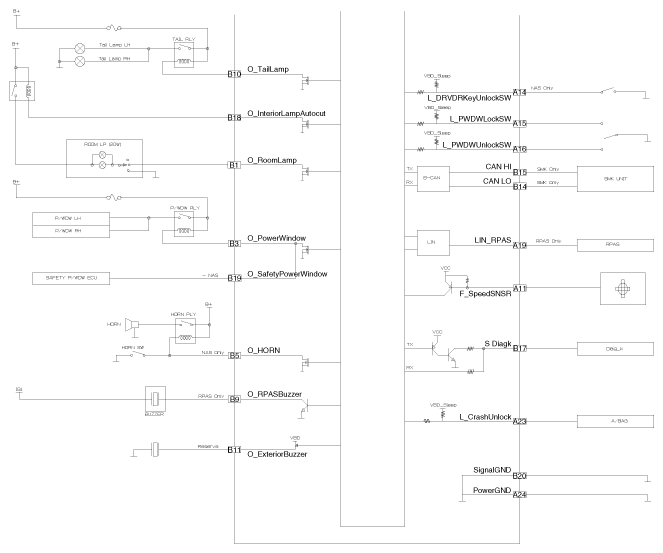

Fig 2: BCM Diagram (2 Of 2)
G12019170Courtesy of HYUNDAI MOTOR AMERICA
