Dual Clutch Transmission Control System - 1.6L T-GDI
>>
Inhibitor Switch
>>
Repair Procedures
>>
Inspection
>>
Inspection Flow
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Inspection Flow

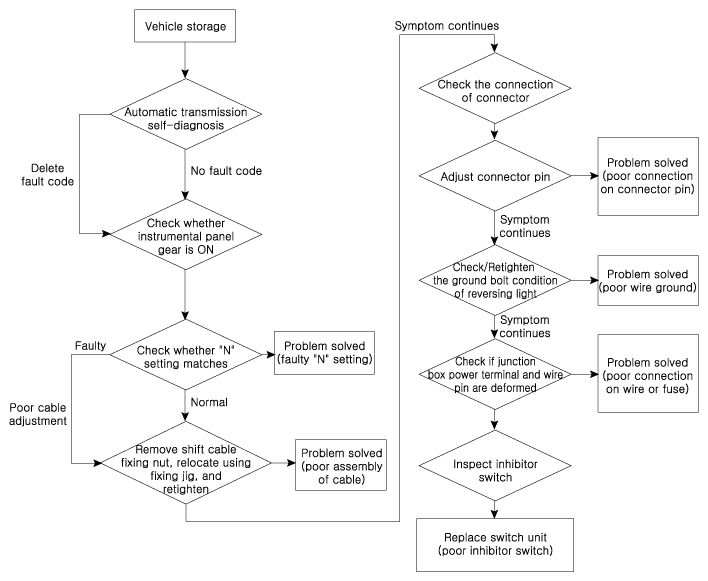

Fig 1: Vehicle Storage Inspection Flow Chart
Courtesy of HYUNDAI MOTOR AMERICA
