Signal Waveform & Data

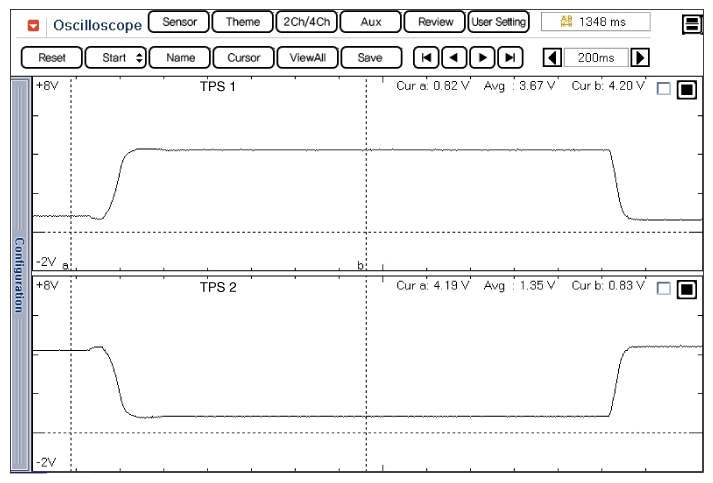

Fig 1: Screen Display - Normal Waveform Of TPS1 & TPS2 With No Accel Pedal Depressed Under IG ON Condition
G10609913Courtesy of HYUNDAI MOTOR AMERICA
