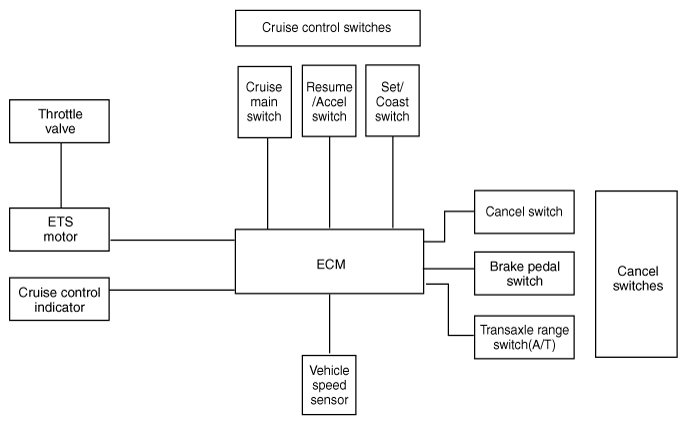

System Block Diagram
COMPONENT PARTS AND FUNCTION OUTLINE
| Component Part | Function | |
|---|---|---|
| Vehicle-Speed Sensor | Converts vehicle speed to pulse. | |
| ECM | Receives signals from sensor and control switches. | |
| Cruise Control Indicator | Illuminate when CRUISE main switch is ON (Built into cluster) | |
| Cruise Control Switches | ON/OFF Switch | Switch for automatic speed control power supply. |
| Resume/Accel Switch | Controls automatic speed control functions by Resume/Accel switch (Set/Coast switch) | |
| Set/Coast Switch | ||
| Cancel Switches | Cancel Switch | Sends cancel signals to ECM. |
| Brake-Pedal Switch | ||
| Transaxle range Switch (A/T) | ||
| ETS Motor | Regulates the throttle valve to the set opening by ECM. | |
* ETS: Electronic Throttle System
