Monitor GDS Data: Notes

  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition "ON" & engine "OFF".
  3. Select "Current Data" mode and monitor "Inhibitor switch" parameter.
  4. Change a shift lever from P-range to D-range.

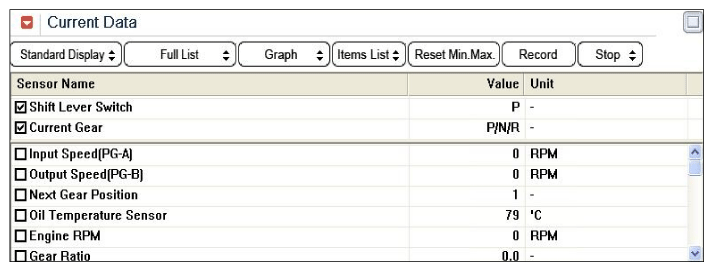

    Fig 1: Screen Display - P Range
    G11677462Courtesy of HYUNDAI MOTOR AMERICA

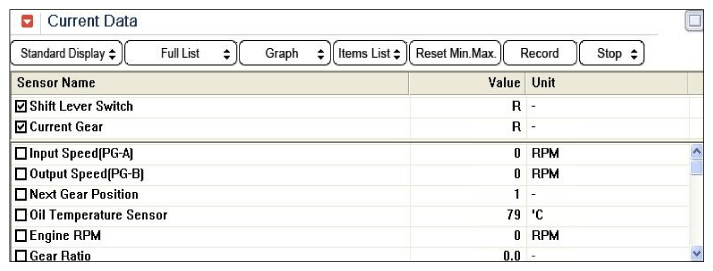

    Fig 2: Screen Display - R Range
    G11677463Courtesy of HYUNDAI MOTOR AMERICA

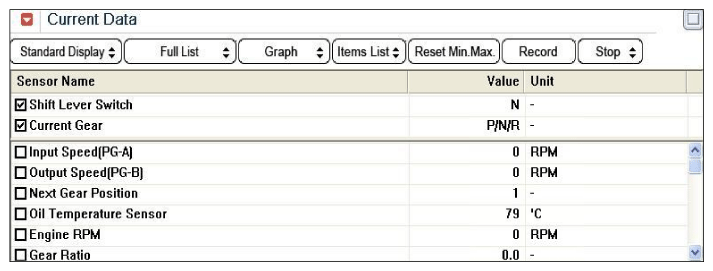

    Fig 3: Screen Display - N Range
    G11677464Courtesy of HYUNDAI MOTOR AMERICA

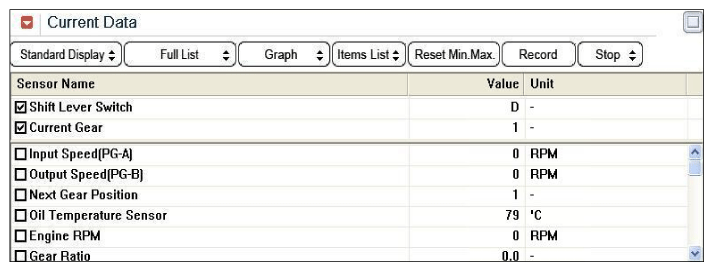

    Fig 4: Screen Display - D Range
    G11677465Courtesy of HYUNDAI MOTOR AMERICA
  5. Is the Inhibitor switch value changed in specification?

    YES

    • P0705 can be happened When Shift Cable alignment is not correct between TGS Lever and Transmission Range Sensor. so Do not replace "Inhibitor Switch" and Check the Alignment of Shift Cable.

    NO
