Engine Control System - 2.0L
>>
Fuel Tank Pressure Sensor (FTPS)
>>
Schematic Diagrams
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

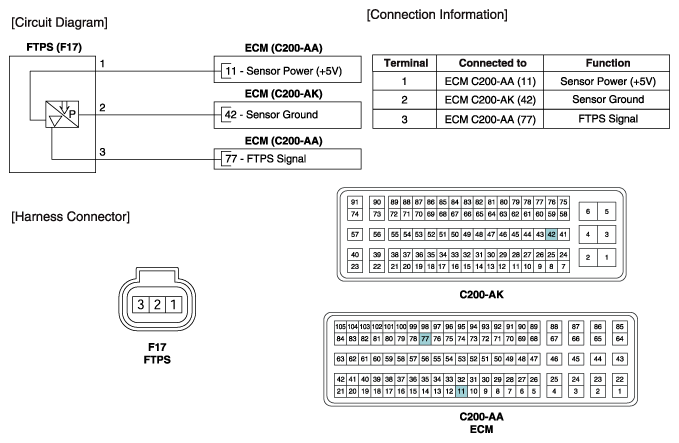

Fig 1: Fuel Tank Pressure Sensor (FTPS) Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
