Circuit Diagram

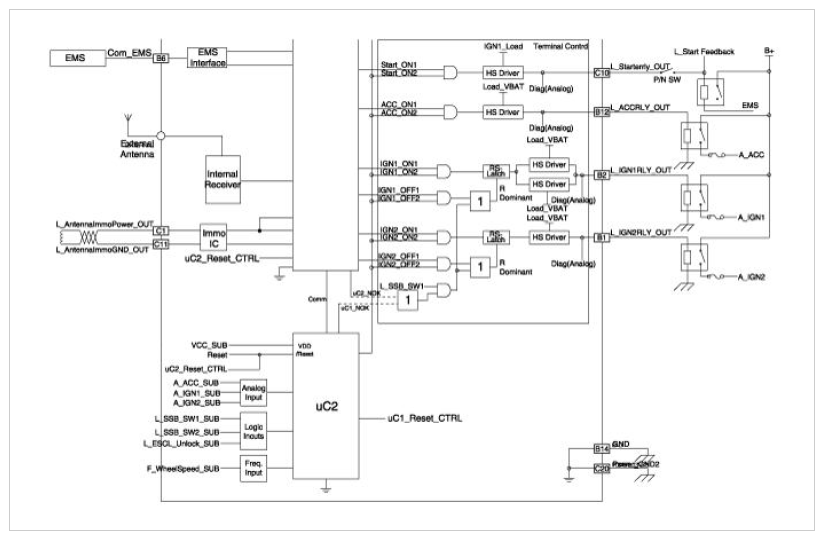

Fig 1: Smart Key Unit Schematic Diagrams (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

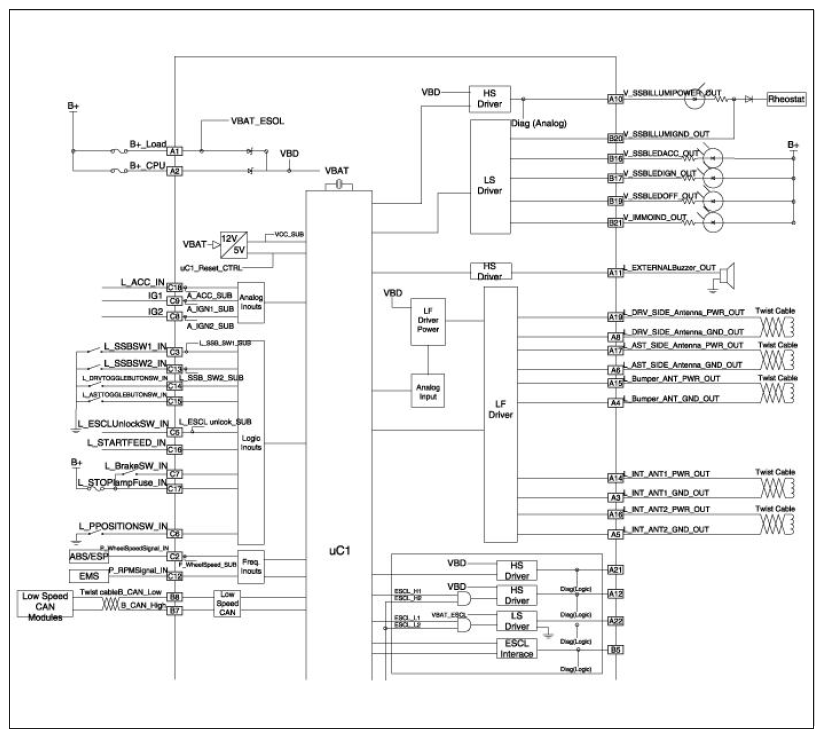

Fig 2: Smart Key Unit Schematic Diagrams (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
