Circuit Diagram

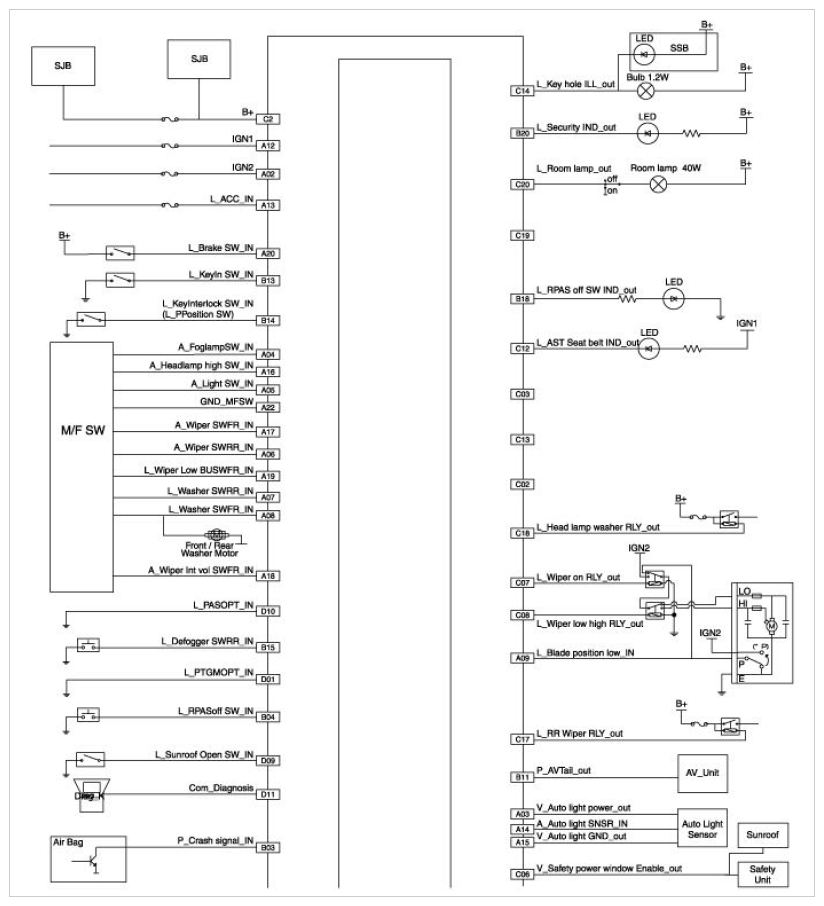

Fig 1: Body Control Module Schematic Diagrams (1 Of 2)
G11669848Courtesy of HYUNDAI MOTOR AMERICA

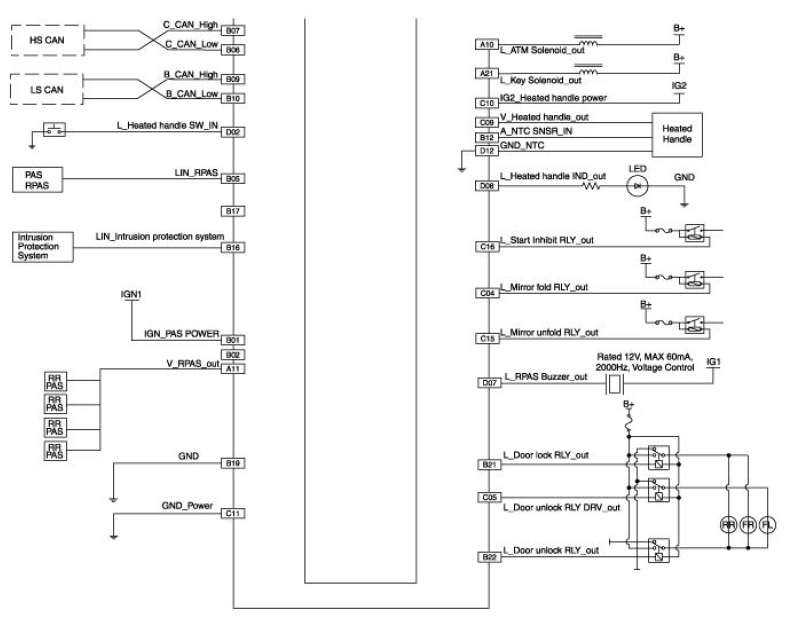

Fig 2: Body Control Module Schematic Diagrams (2 Of 2)
G11669849Courtesy of HYUNDAI MOTOR AMERICA
