Component Location

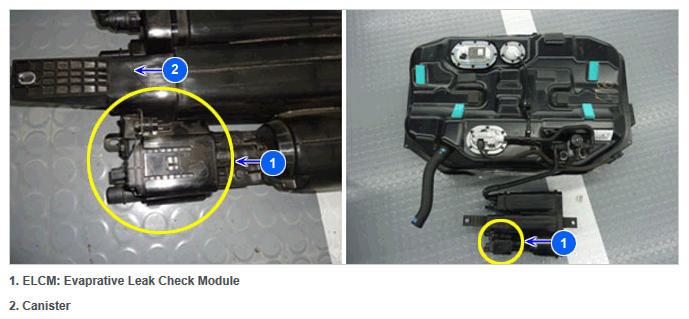

Fig 1: EVAP System Leak Detection Reference Orifice High Flow Component Location
G11638767Courtesy of HYUNDAI MOTOR AMERICA
