GDS Data Analysis: Notes

  1. Connect GDS to Data Link Connector (DLC).
  2. IG "ON".
  3. Perform variant coding in Vehicle S/W Management menu of the GDS. (Fig 1)
  4. Fill in blanks with VIN number of the vehicle correctly. (Fig 2)
  5. Check whether current variant code corresponds to the options which are applied to the vehicle. (Fig 3)
  6. IG "OFF" and wait for about 10 seconds, and then IG "ON". Go to Variant Code Reset  Procedure.
NOTE: In case that the state of HAC is enabled, operate "longitudinal G sensor Calibration" by GDS. (refer to C128504 )

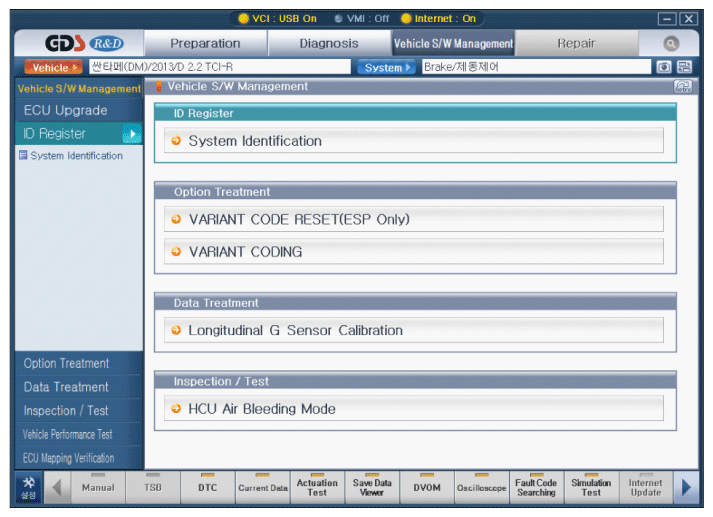

Fig 1: Display - Vehicle S/W Management GDS Menu Screen
G11638178Courtesy of HYUNDAI MOTOR AMERICA

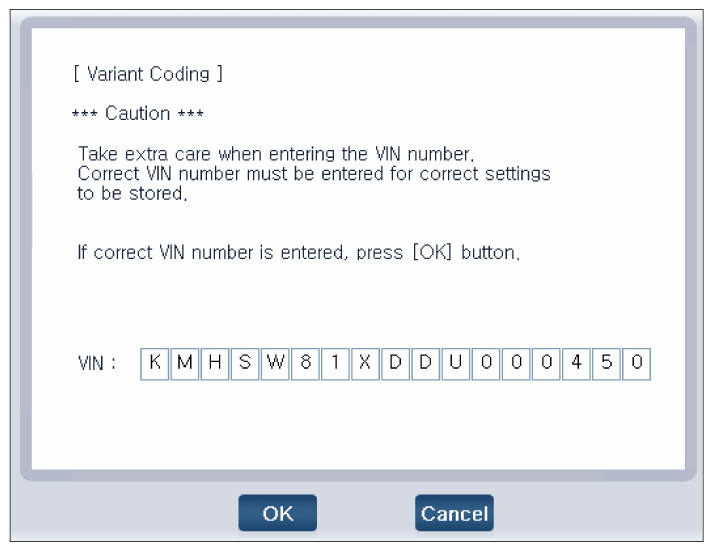

Fig 2: Display - Vehicle VIN Number Screen
G11638179Courtesy of HYUNDAI MOTOR AMERICA

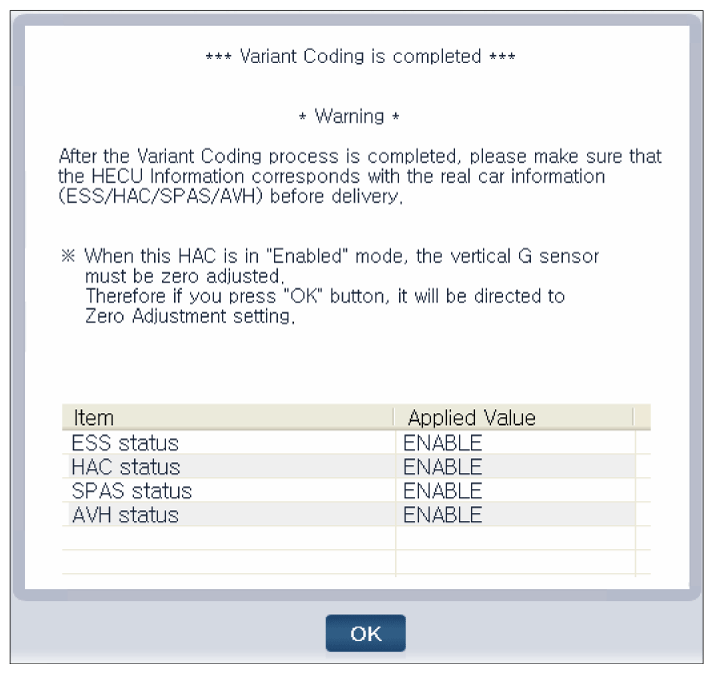

Fig 3: Display - Current Variant Code Screen
G11638180Courtesy of HYUNDAI MOTOR AMERICA
  1. Connect GDS to Data Link Connector (DLC).
  2. IG "ON".
  3. Perform variant coding in Vehicle S/W Management menu of the GDS. (Fig 4)

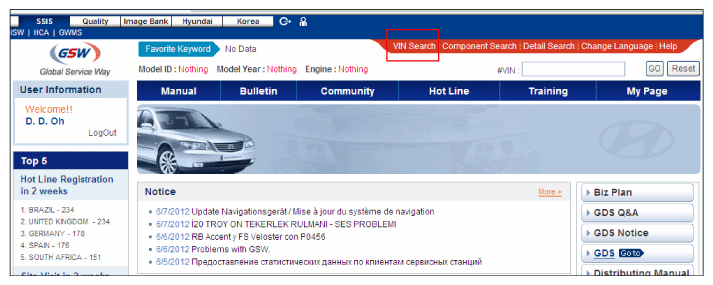

  4. Log in GSW website (http://ccc.hyundai-motor.com/) and then click "VIN Search" at the top center side of the screen.
  5. Select ESP and fill in VIN number (or body number) correctly, and check ESC code. (Fig 5)
  6. Fill in the blank with ESC code checked in GSW web site. (Fig 6)
  7. Check whether current variant code corresponds to the options which are applied to the vehicle.
  8. IG "OFF" and wait for about 10 seconds, and then IG "ON". Go to Variant Code Reset  Procedure.
NOTE: In case that the state of HAC is enabled, operate "longitudinal G sensor Calibration" by GDS. (refer to C128504 )
Fig 4: Display - Variant Coding Vehicle S/W Management Menu Screen
G11638181Courtesy of HYUNDAI MOTOR AMERICA

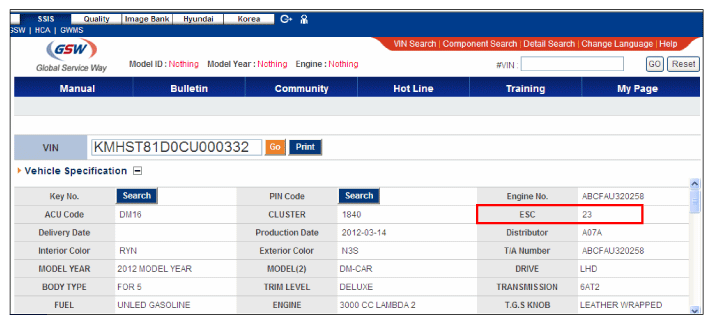

Fig 5: Display - VIN Number Screen
G11638182Courtesy of HYUNDAI MOTOR AMERICA

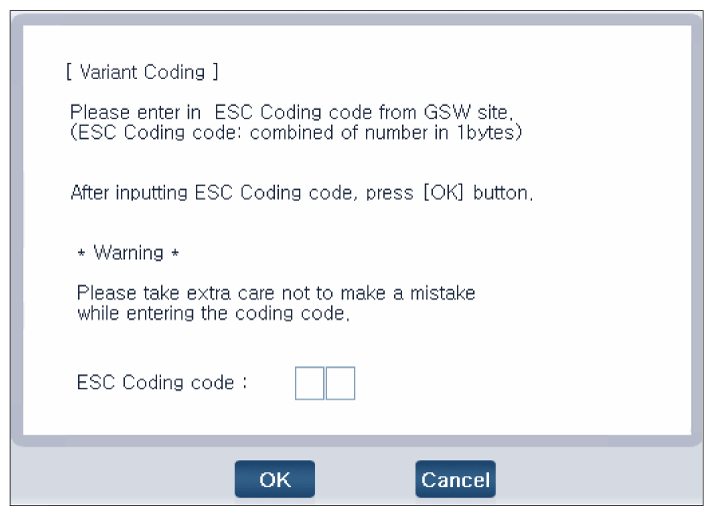

Fig 6: Display - ESC Code Screen
G11638183Courtesy of HYUNDAI MOTOR AMERICA
