Driver Power Window Switch

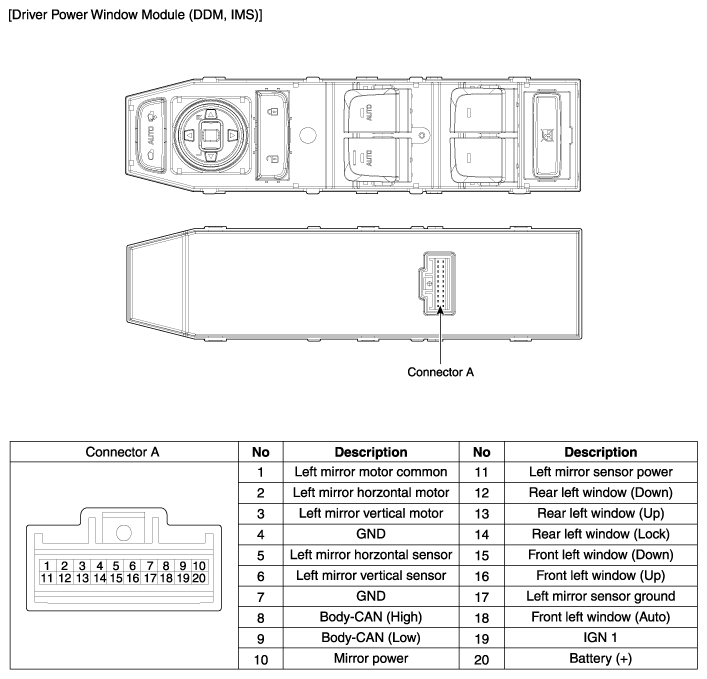

Fig 1: Driver Power Window Switch Connector Terminals Description Chart (1 Of 2)
G12062863Courtesy of HYUNDAI MOTOR AMERICA

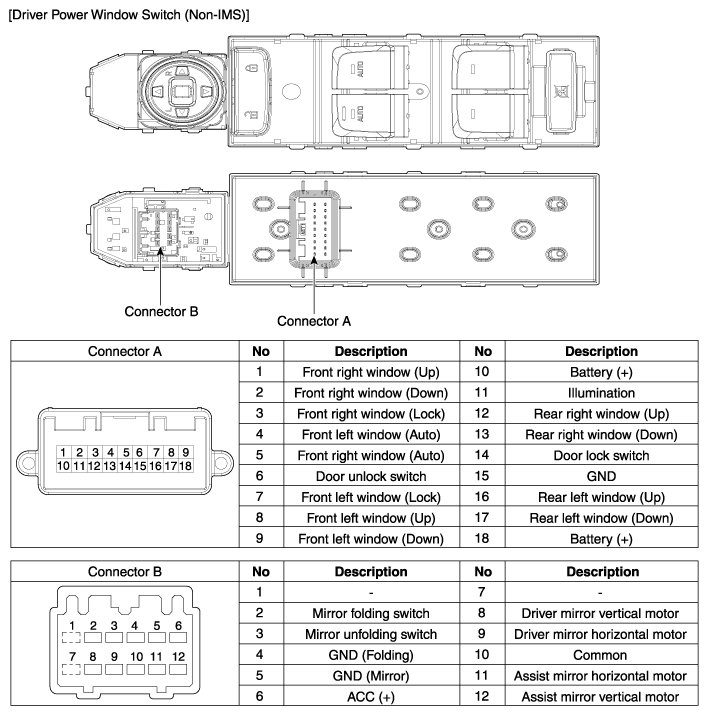

Fig 2: Driver Power Window Switch Connector Terminals Description Chart (2 Of 2)
G12062864Courtesy of HYUNDAI MOTOR AMERICA
