Assist Power Window Switch

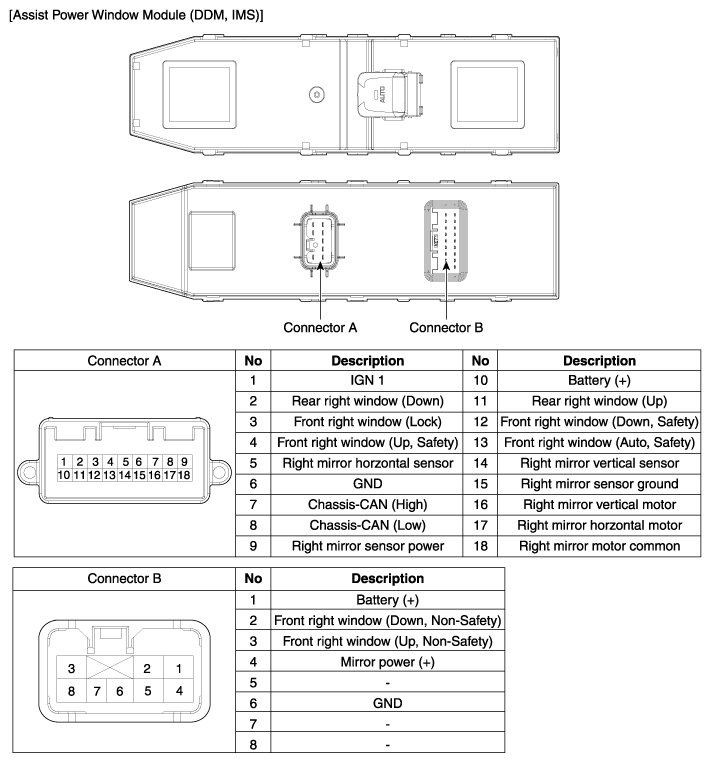

Fig 1: Assist Power Window Switch Connector Terminals Description Chart
G12062865Courtesy of HYUNDAI MOTOR AMERICA
