Section 138 (Smart Key System (HEV))
>>
Smart Key Unit
>>
Schematic Diagrams
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

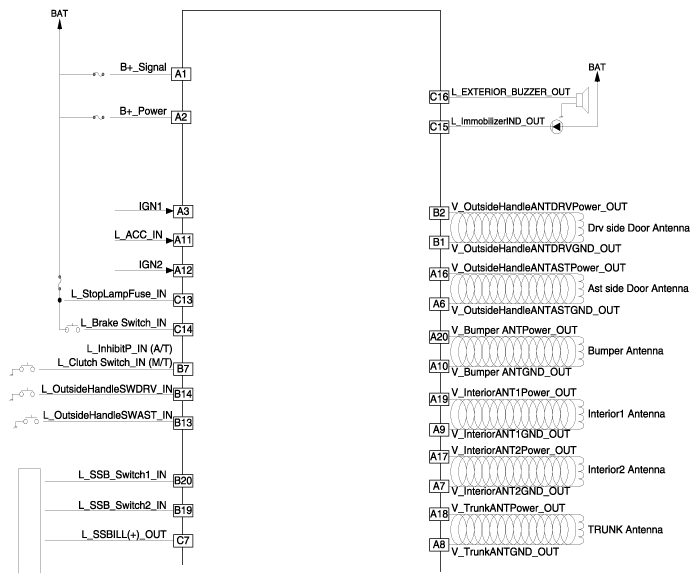

Fig 1: Smart Key Unit Circuit (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

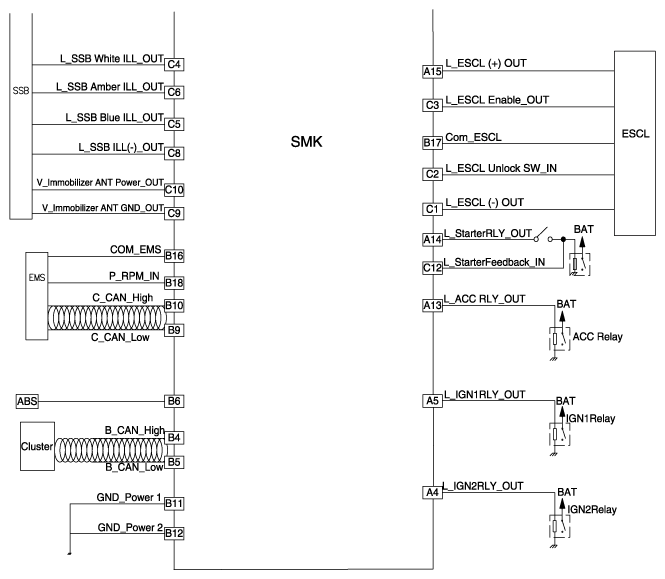

Fig 2: Smart Key Unit Circuit (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
