Components and Components Location: Components

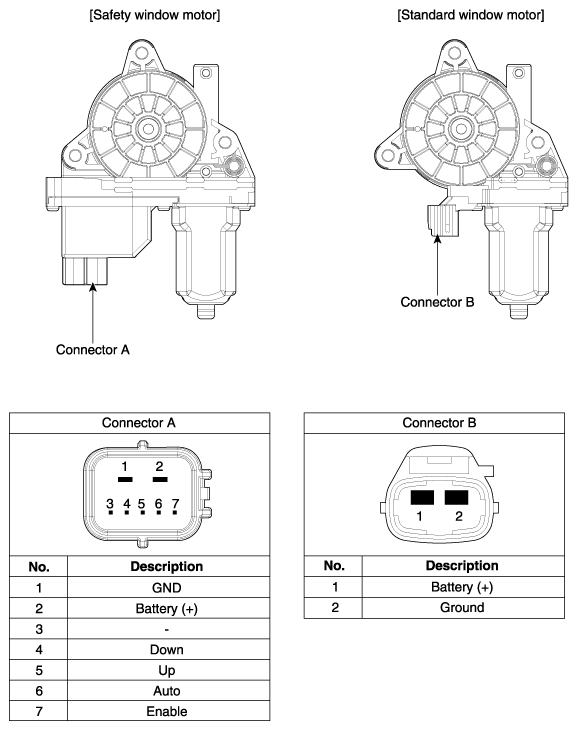

Fig 1: Identifying Power Window Motor Connector
G10567840Courtesy of HYUNDAI MOTOR AMERICA
