Engine Control System Diagnosis (3 Of 3)
>>
DTC P0620: Alternator Control Circuit
>>
Specification
>>
Signal Waveform & Data
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Signal Waveform & Data

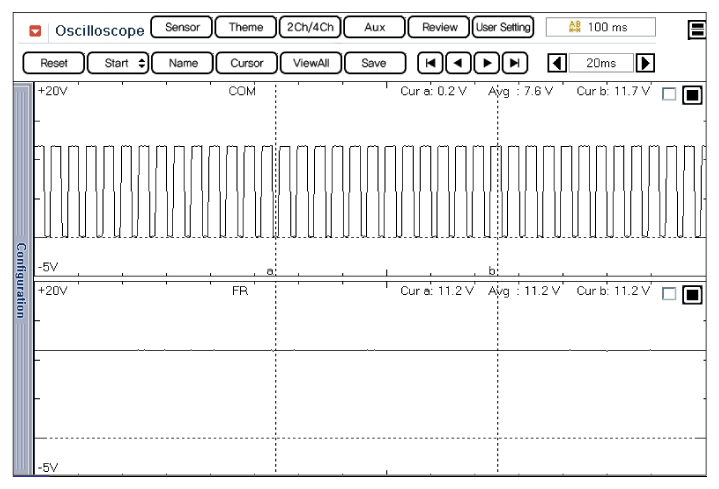

Fig 1: Screen Display - Normal Waveforms Of COM, FR terminal Of Alternator At Idle
Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Screen Display - Normal Waveforms Of COM, FR terminal Of Alternator With Connector Disconnected Condition At IG ON
Courtesy of HYUNDAI MOTOR AMERICA
