Circuit Diagram

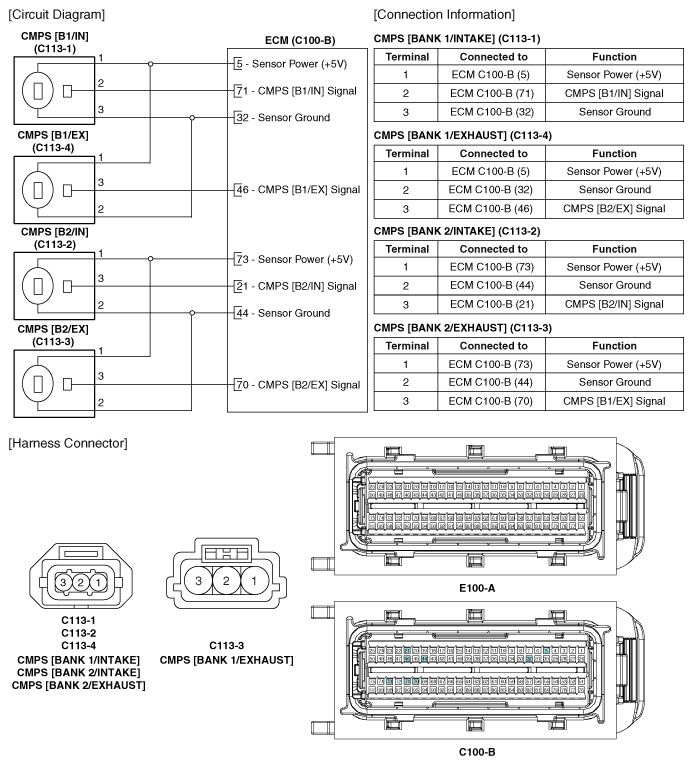

Fig 1: Camshaft Position Sensor - CMPS - Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
