Engine Control System - 2.4L
>>
CVVT Oil Control Valve (OCV)
>>
Schematic Diagrams
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

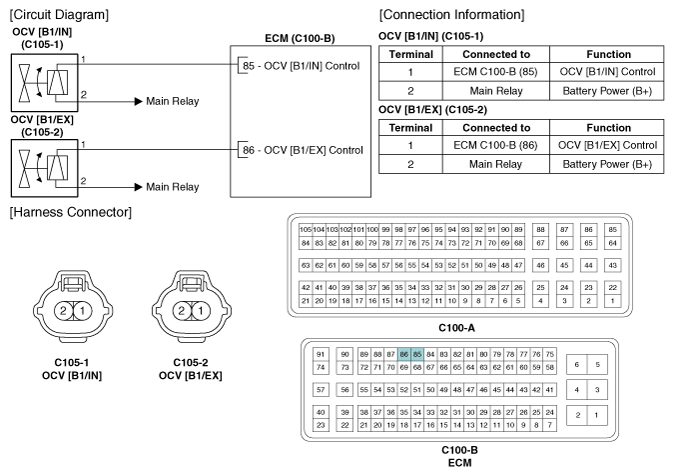

Fig 1: CVVT OCV Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
