Liftgate Switch

Check for continuity between the liftgate latch terminals.

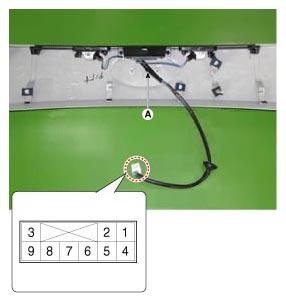

Fig 1: Identifying Liftgate Latch Connector Terminals
Courtesy of HYUNDAI MOTOR AMERICA
If continuity is not specified, inspect the switch

Fig 2: Liftgate Switch Continuity Chart

Courtesy of HYUNDAI MOTOR AMERICA
