Home >> Hyundai >> 2016 >> Santa Fe Sport 2.0T, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.0L >> Fuel Pressure Control Valve >> Schematic Diagrams >> Circuit Diagram
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Circuit Diagram

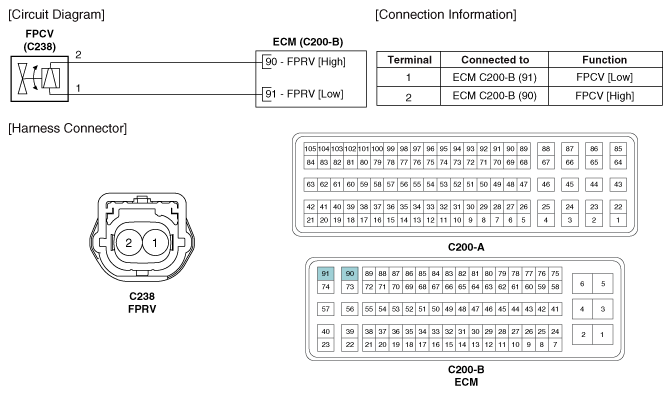

Fig 1: Fuel Regulator Control Valve Connector Terminals Circuit Diagram
G10582829Courtesy of HYUNDAI MOTOR AMERICA
