Genesis Coupe 3.8, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 3.8L
>>
Barometric Pressure Sensor - BPS
>>
Schematic Diagrams
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

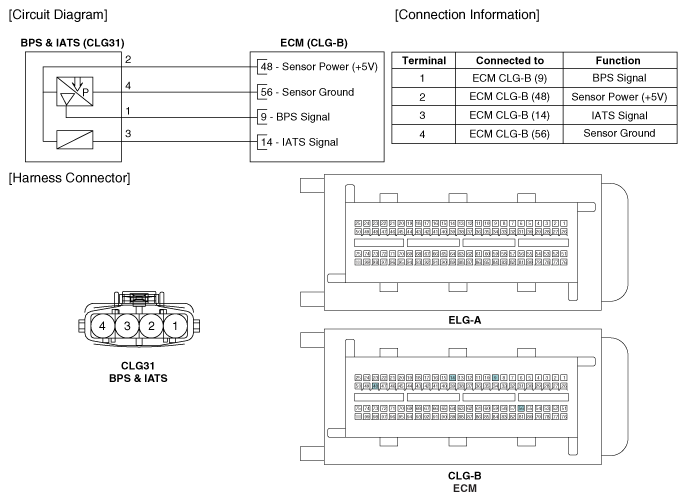

Fig 1: BPS Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
