Genesis 5.0
>>
Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Fuel Delivery System - 5.0L
>>
Fuel Pump Control Module (FPCM)
>>
Schematic Diagrams
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

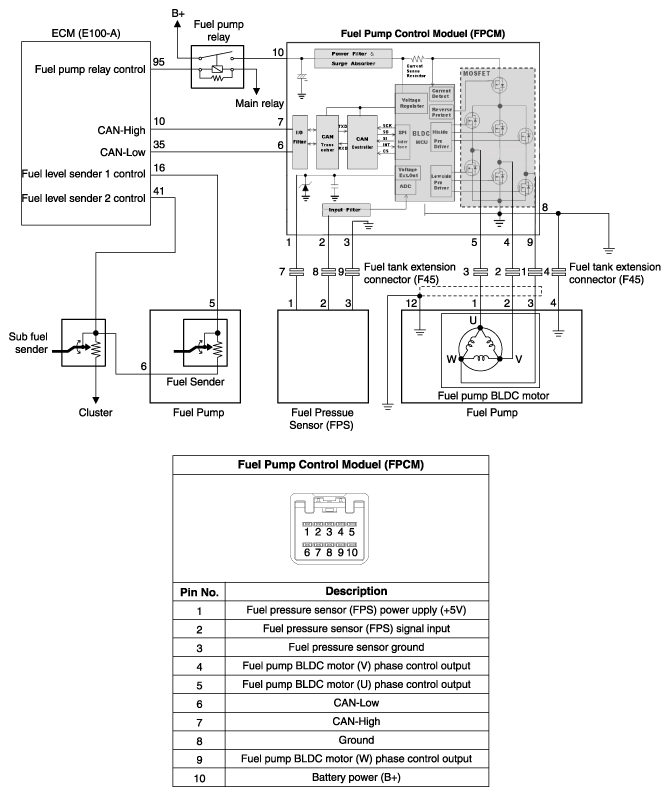

Fig 1: Fuel Pump Control Module Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
