Engine Control System - 5.0L
>>
Heated Oxygen Sensor (HO2S)
>>
Schematic Diagrams
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

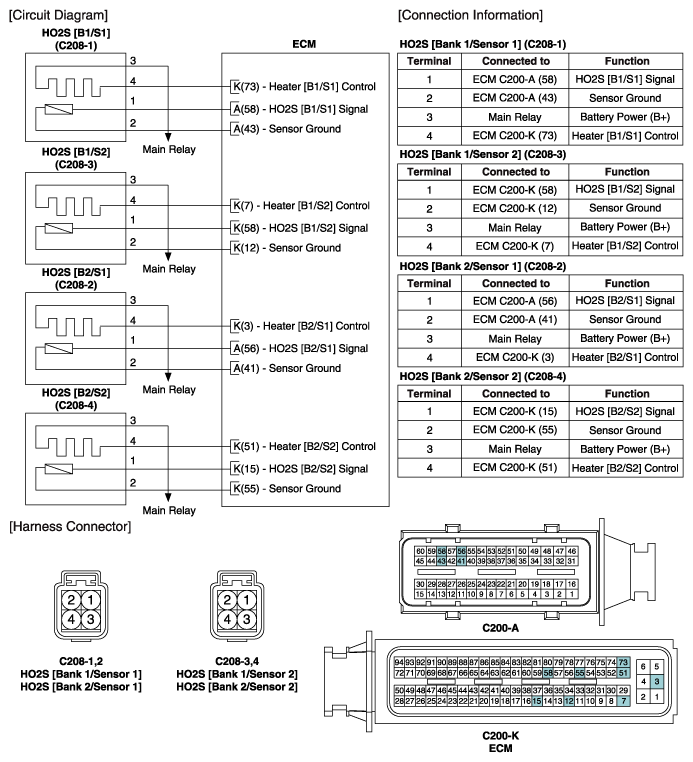

Fig 1: Heated Oxygen Sensor - Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
