Components and Components Location: Component

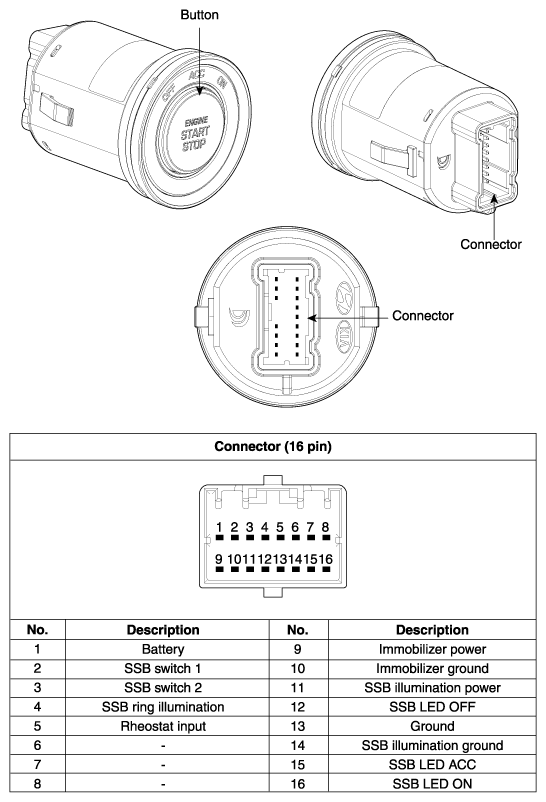

Fig 1: Start Stop Button And Terminals

G10454757

Courtesy of HYUNDAI MOTOR AMERICA
