Components and Components Location: Components

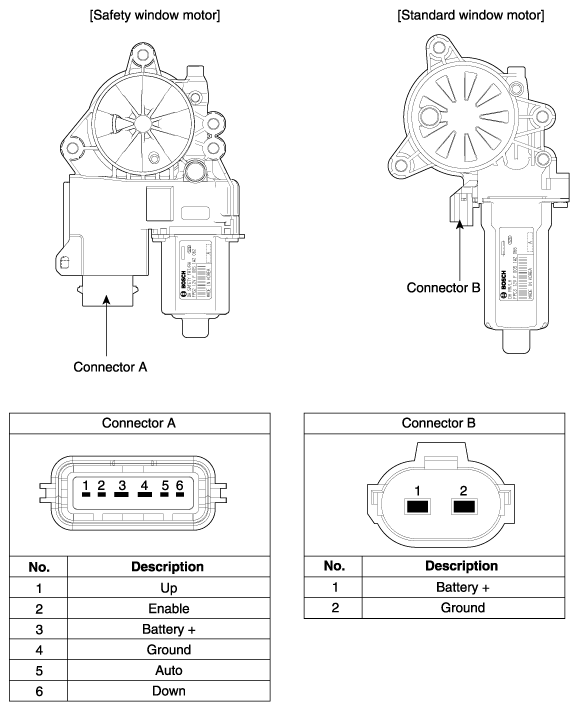

Fig 1: Power Window Motor Connectors

G10454455

Courtesy of HYUNDAI MOTOR AMERICA
