Components and Components Location: Components

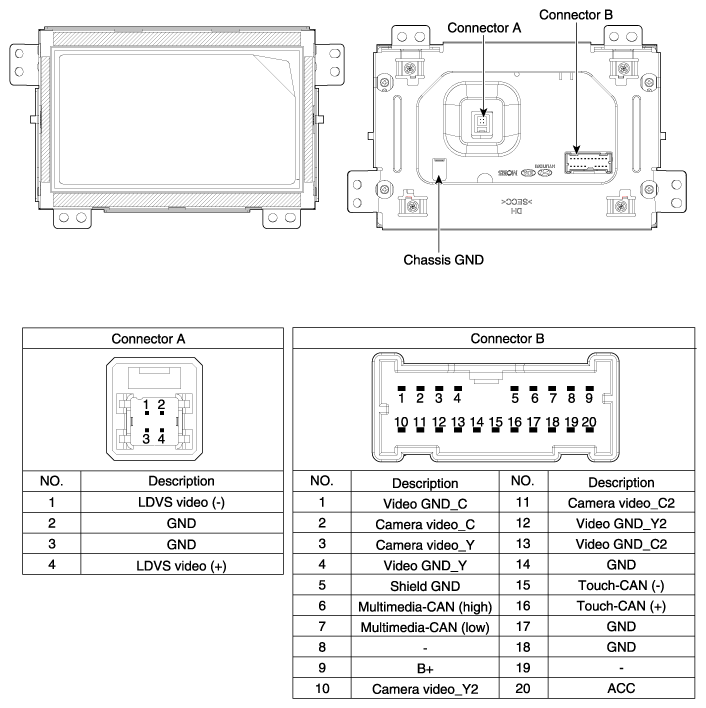

Fig 1: Front LCD Monitor Components And Terminals
G10454032Courtesy of HYUNDAI MOTOR AMERICA
