Block Diagram

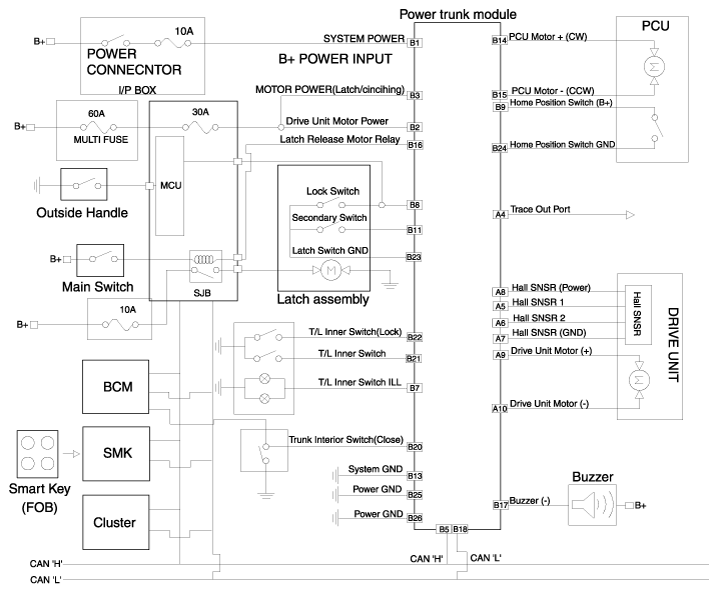

Fig 1: Power Trunk Module Drive Unit Block Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
