Component Location

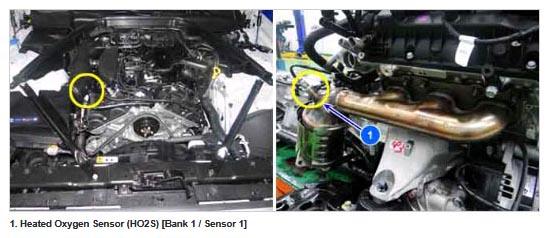

Fig 1: Heated Oxygen Sensor (HO2S; Bank 1/Sensor 1) Component Location
G10471356Courtesy of HYUNDAI MOTOR AMERICA
