Power Seat Module Diagnosis
>>
DTC B1602: CAN Error
>>
Specification
>>
Signal Waveform & Data
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Signal Waveform & Data

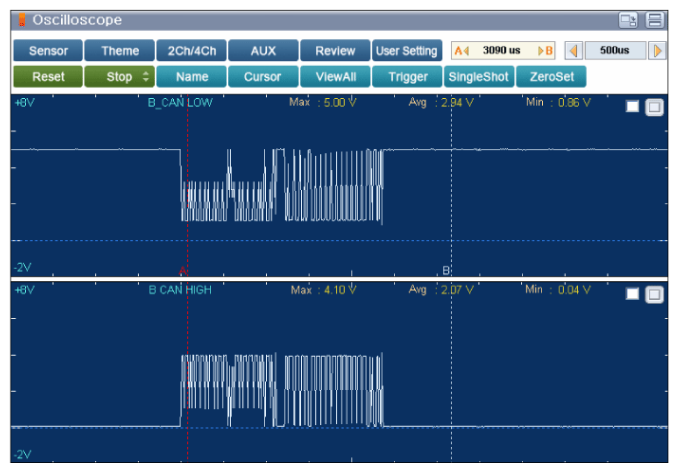

Fig 1: Display - B CAN Low And High Signal Waveform
Courtesy of HYUNDAI MOTOR AMERICA
