Component Location

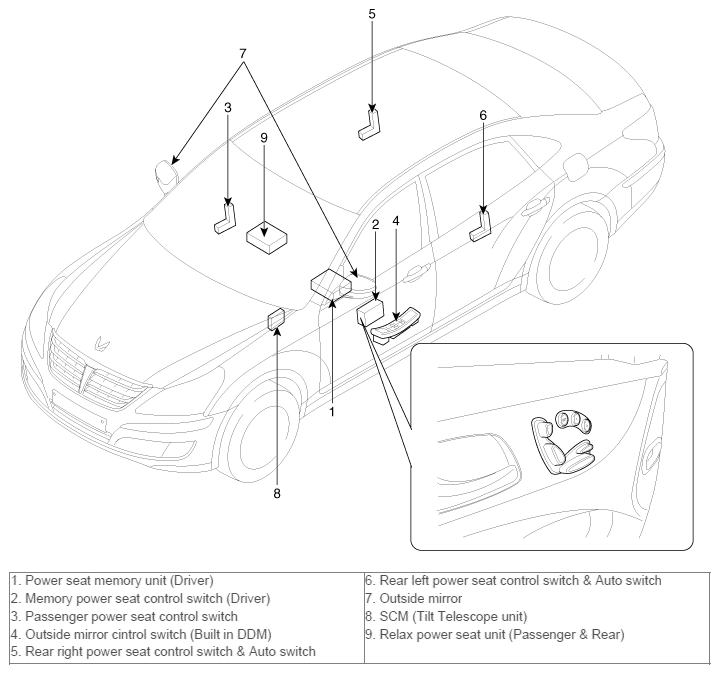

Fig 1: Integrated Memory System (IMS) Component Locations
Courtesy of HYUNDAI MOTOR AMERICA
