Components and Components Location: Component

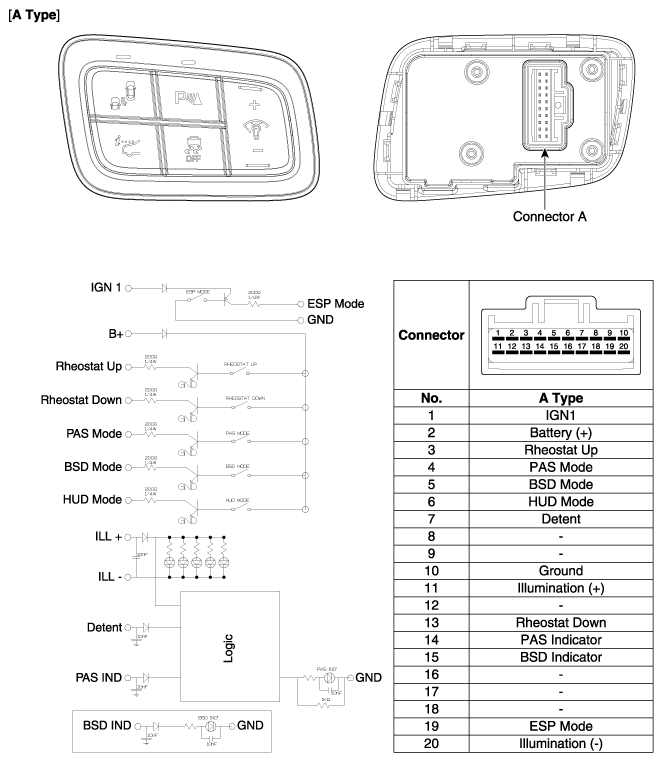

Fig 1: Blind Spot Detection Switch (A Type) And Connector Terminal Identification
Courtesy of HYUNDAI MOTOR AMERICA

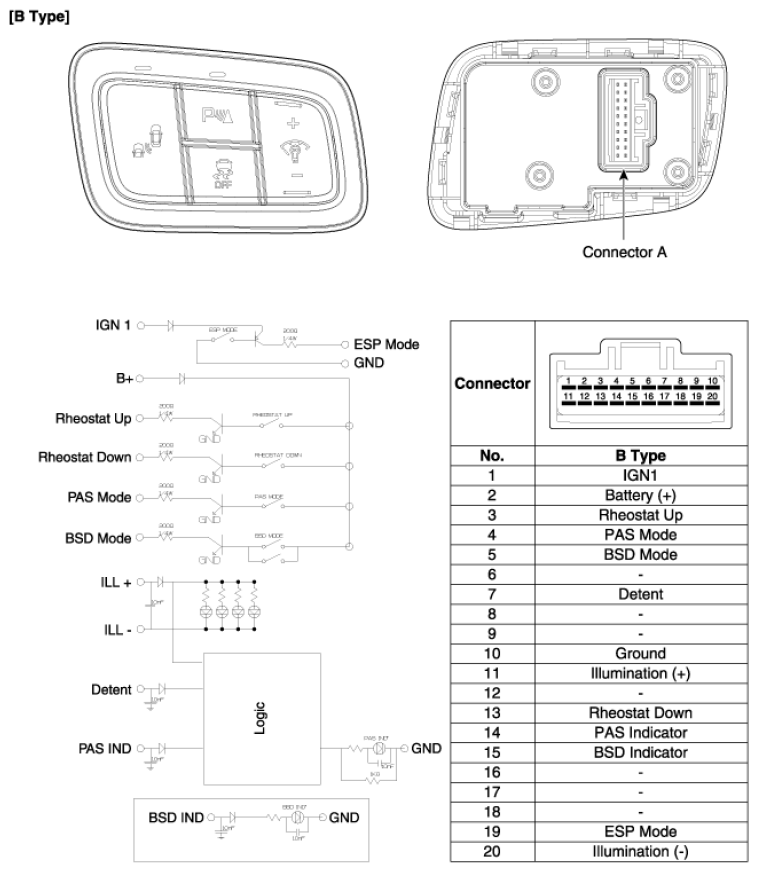

Fig 2: Blind Spot Detection Switch (B Type) And Connector Terminal Identification
Courtesy of HYUNDAI MOTOR AMERICA
