Circuit Diagram: (M/T)

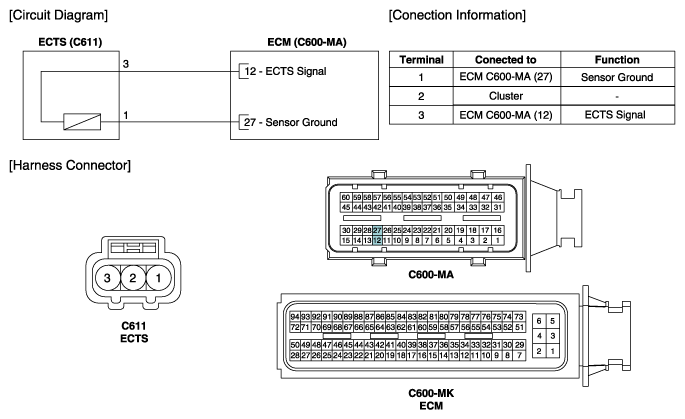

Fig 1: Engine Coolant Temperature Sensor - Circuit Diagram (M/T)
G10537664Courtesy of HYUNDAI MOTOR AMERICA
