Circuit Diagram: (A/T)

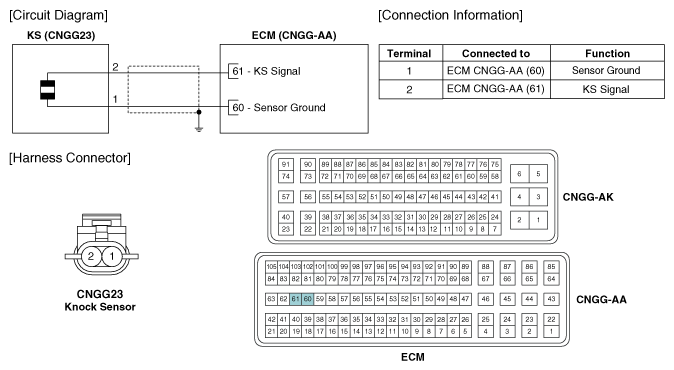

Fig 1: Knock Sensor Circuit Diagram (A/T)

G10749881

Courtesy of HYUNDAI MOTOR AMERICA
