Diagnosis Procedure By Using Diagnostic Device

WARNING: This page is about a different car, the 2016 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

As the procedure for diagnosis methods by using diagnosis device, the main contents are as follows:

Connect Self-Diagnosis Connector (16 Pins) located in the lower of driver side crash pad to self-diagnosis device, and then turn the self-diagnosis device after key is ON.
Select the "vehicle model" and "TPMS" on GDS vehicle selection screen, then select OK.

[Vehicle Name Input Initialization]

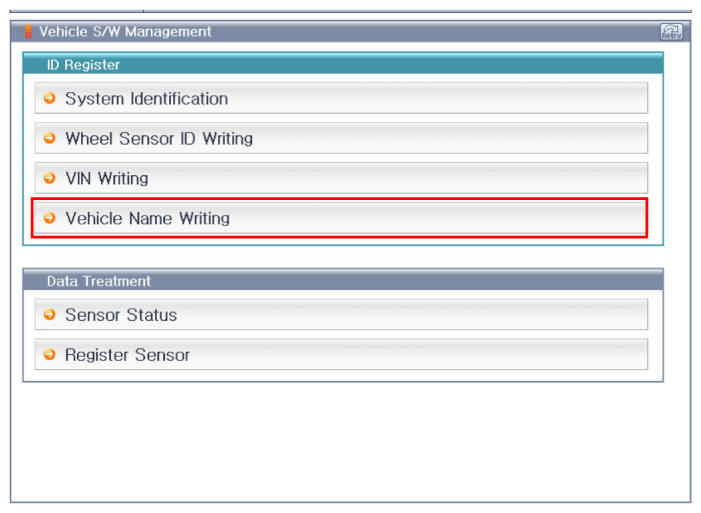

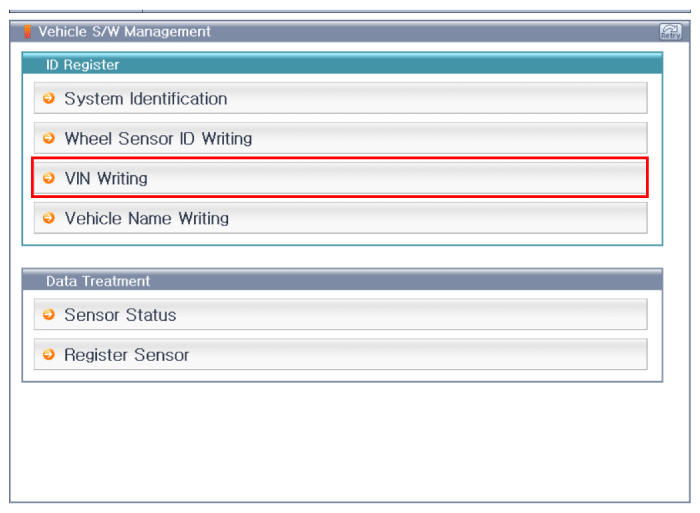

Fig 1: Vehicle Name Input Initialization - Screen Display

Courtesy of HYUNDAI MOTOR AMERICA

[Vehicle Name Writing 1]

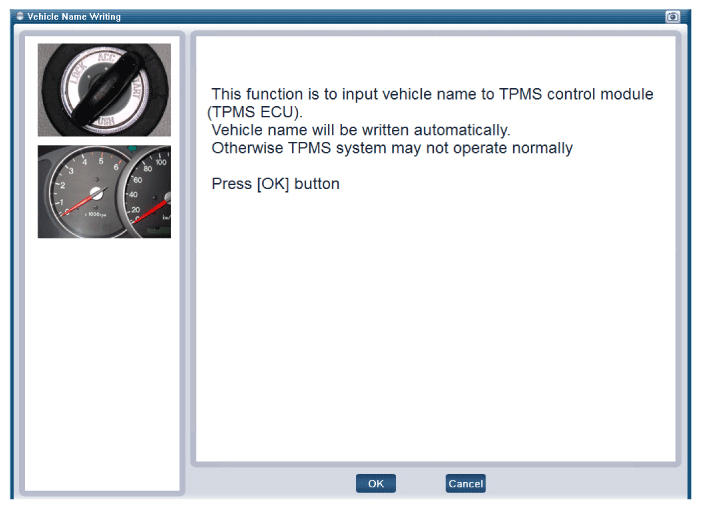

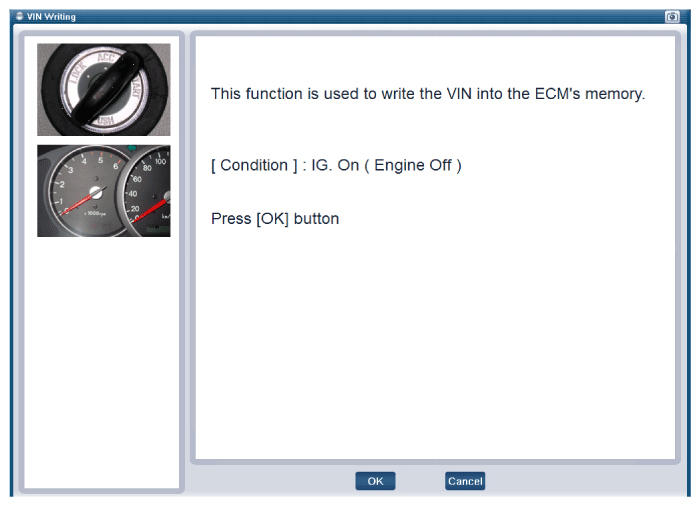

Fig 2: Vehicle Name Writing 1 - Screen Display (1 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

[Vehicle Name Writing 2]

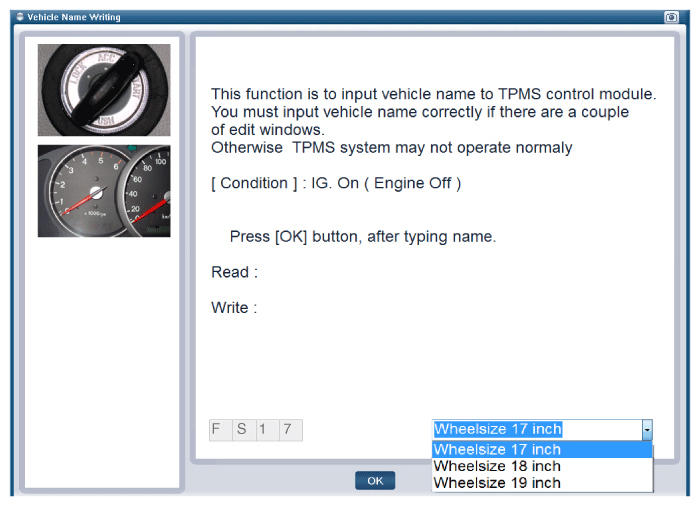

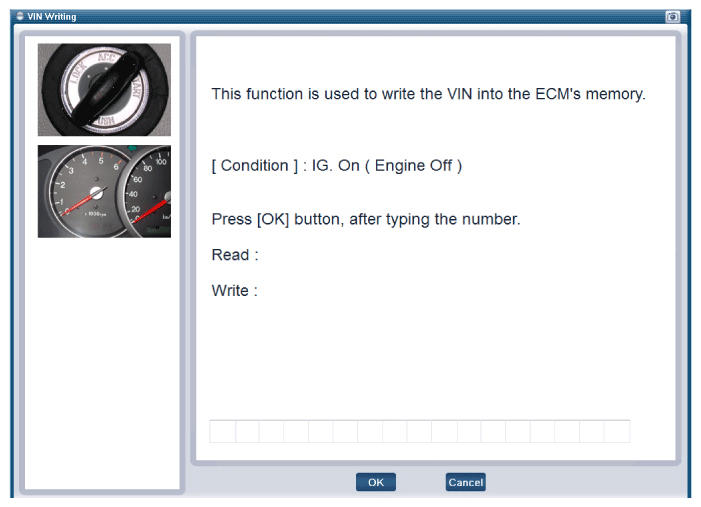

Fig 3: Vehicle Name Writing 2 - Screen Display (2 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

Check the specifications for the vehicle and the selected part option, press the OK button and enter when completed.
When you input the vehicle name, check the tire inch and exactly input inch option to device.

[Vehicle Name Writing 3]

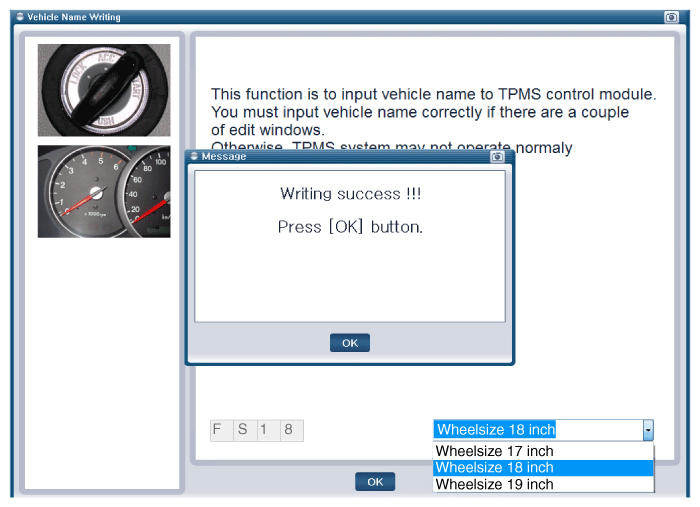

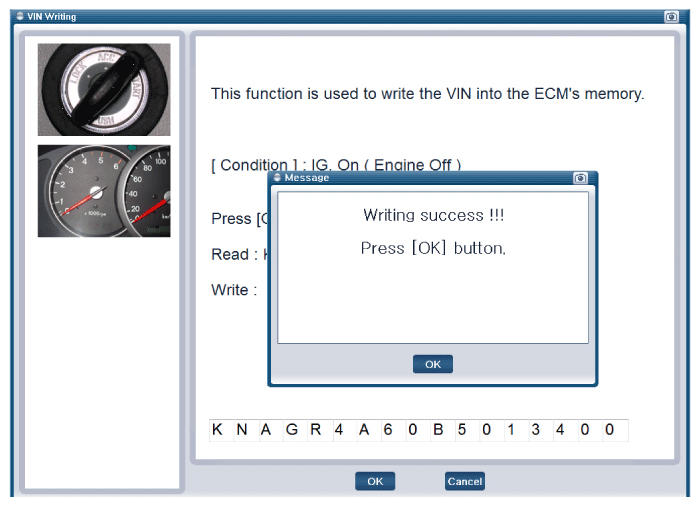

Fig 4: Vehicle Name Writing 3 - Screen Display (3 Of 3)
