Components and Components Location: Components: (LHD)

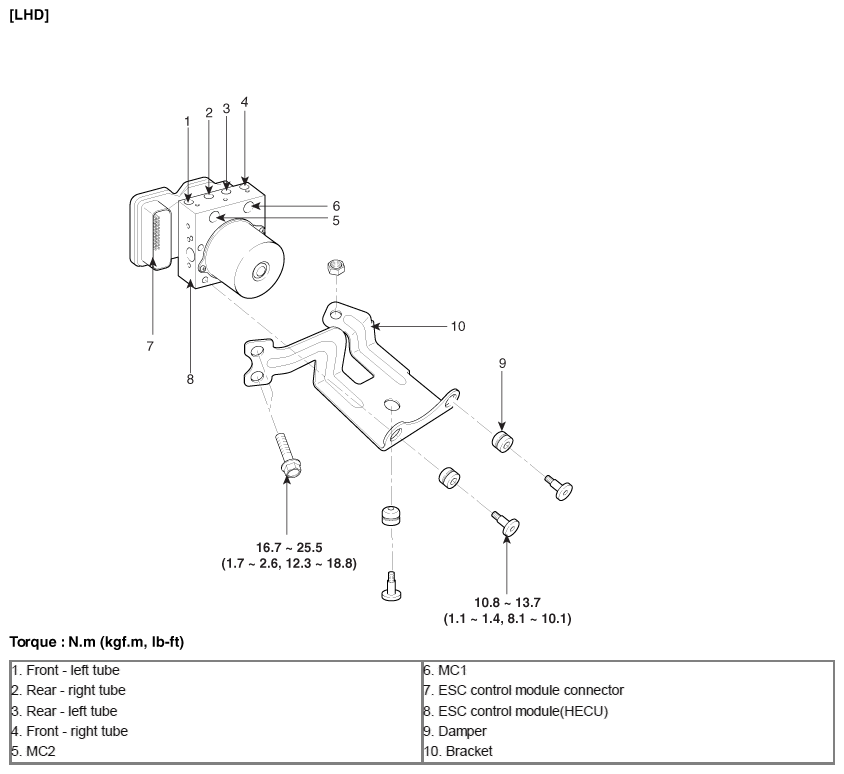

Fig 1: Electronic Stability Control (ESC) Control Unit Components With Torque Specifications (LHD)
G10612491Courtesy of HYUNDAI MOTOR AMERICA
