Circuit Diagram

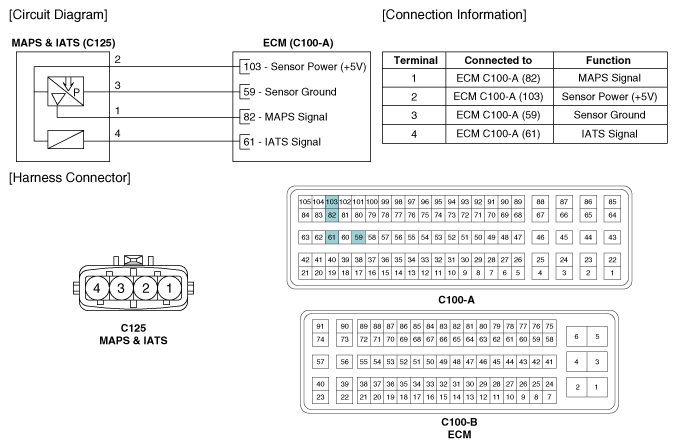

Fig 1: Intake Air Temperature Sensor & Manifold Absolute Pressure Sensor - Circuit Diagram
G10631536Courtesy of HYUNDAI MOTOR AMERICA
