Component Location

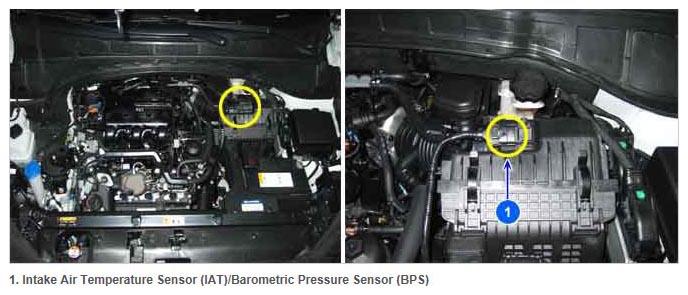

Fig 1: Identifying Intake Air Temperature Sensor/Barometric Pressure Sensor
G10580115Courtesy of HYUNDAI MOTOR AMERICA
